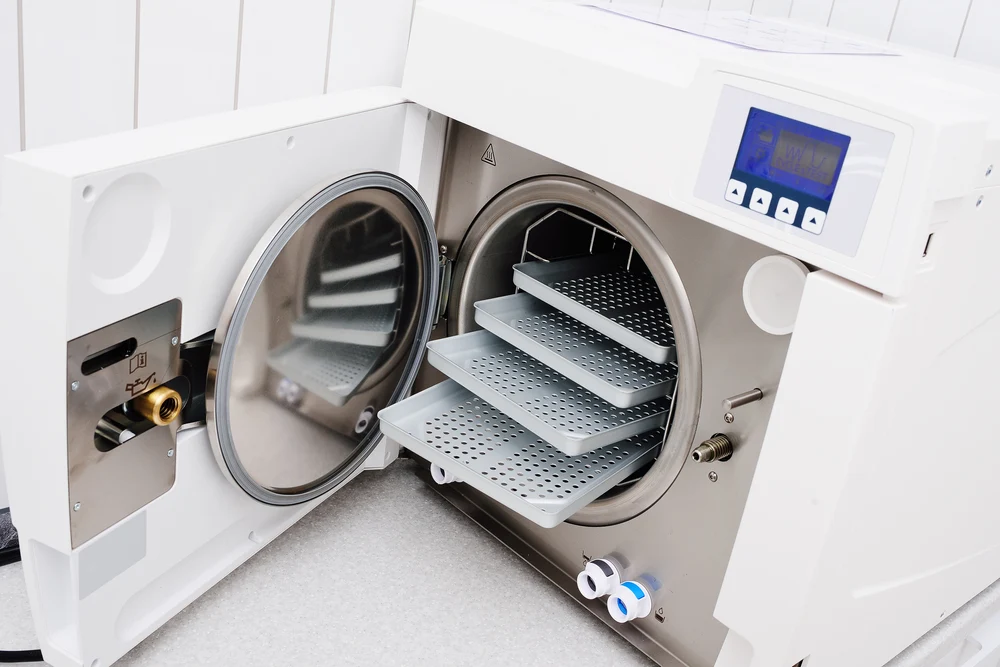

Lab Autoclave

Key Features

  • Fully Automatic Class B Steam Sterilization
  • High-Efficiency Vacuum Pump
  • Pre-Vacuum & Post-Vacuum Drying
  • 3.5″ LCD or 5″ Touch LCD Display (Model Dependent)
  • Stainless Steel Sterilization Chamber (SUS304)
  • Built-in Clean & Waste Water Tanks
  • USB Port for Sterilization Data
  • Built-in Thermal Printer (Available on Selected Models)
  • Multiple Automatic Sterilization Programs
  • B&D Test, Vacuum Test & HELIX Test
  • Automatic Safety Door Lock
  • Low Water Level Detection
  • Over-Temperature & Over-Pressure Protection

Technical Specifications

Parameter Specification Sterilization Class Class B Sterilization Method High Pressure Saturated Steam Chamber Capacity 18L / 23L Chamber Material SUS304 Stainless Steel Chamber Size Ø250 × 350 mm (18L) / Ø250 × 450 mm (23L) Working Temperature 105°C – 134°C Sterilization Programs 121°C & 134°C Maximum Designed Temperature 150°C Working Pressure 0.23 MPa Designed Pressure -0.1 ~ 0.30 MPa Temperature Resolution 0.1°C Sterilization Time 0–99 Minutes Drying Time 0–99 Minutes Vacuum System High-Efficiency Vacuum Pump Water Tank Capacity 3.5 L (Clean & Waste Tanks) Display LCD / Touch LCD (Model Dependent) Chamber Rack 3 Sterilization Trays Data Storage USB Data Export Printer Built-in or Optional (Model Dependent) Power Consumption 3 kW Power Supply AC 220V, 50/60Hz (110V Optional)

Description

Class B Tabletop Autoclave delivers reliable and efficient steam sterilization using advanced pulse vacuum technology. Multiple vacuum cycles remove air from the chamber before sterilization, allowing saturated steam to penetrate wrapped, hollow, porous, and solid instruments effectively. After sterilization, the automatic vacuum drying system ensures instruments are dry and ready for immediate use.

Built with a corrosion-resistant SUS304 stainless-steel chamber, intelligent microprocessor control, and comprehensive safety features, this autoclave provides dependable performance for healthcare facilities, laboratories, research institutes, and educational organizations. USB data storage, optional thermal printing, and multiple automatic sterilization programs simplify documentation and daily operation.
